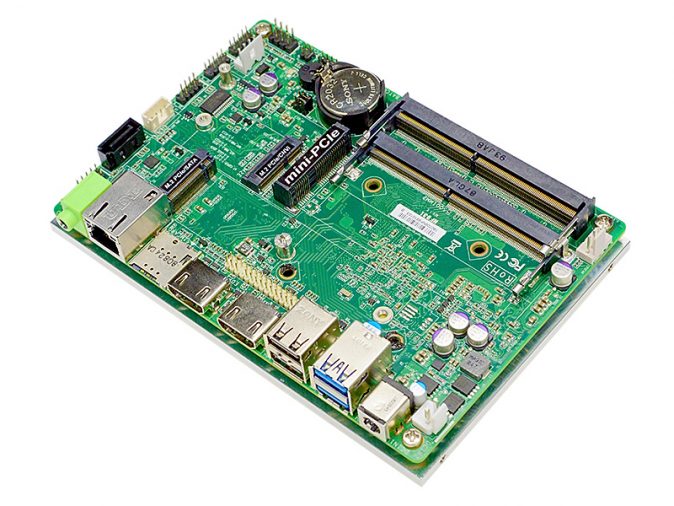

NF931 – 3.5″ SBC Equipped with Quad Core Intel® Celeron Processor

The NF931 is a 3.5" Single Board Computer equipped with an Intel® Celeron Quad Core Processor. This board's small footprint and low power consumption make it both efficient and capable in many industrial applications. The NF931 is an excellent solution for digital signage, retail, automation, and more.

Additional information

CPU

Intel® Celeron J4125 Processor Quad Core up to 2.70 GHz, Intel® Celeron J4105 Processor Quad Core up to 2.50 GHz

Memory Type

260-pin DDR4 2400MHz SO-DIMM

Memory Slots

2

Maximum Memory Supported

8GB

Chipset

Integrated in SoC

Integrated Graphics

Intel® HD Graphics 600

Watchdog Timer

10 ~ 255 min/sec

Video

2 x HDMI, 1 x eDP

LAN Ports

1 x Intel® I211-AT Gigabit LAN

Serial ATA (SATA)

1 x SATA III

Storage

Onboard 32GB eMMC

GPIO Interface

1 x GPIO 8-bit

TPM

Optional Onboard TPM 1.2 or 2.0, contact sales for more information.

Extended Interface

1 x Full-Size Mini-PCIe w/ SIM, 1 x M.2 E-Key 2230 (WiFi), 1 x M.2 M-Key 2242/2280 (SATA & PCIe 3.0 x2 NVMe)

Rear I/O

2 x USB 3.1 Gen1, 2 x USB 2.0, 1 x LAN, 2 x HDMI, 1 x SIM, 1 x Line-Out, 1 x DC Input Jack 12V

Internal I/O

2 x USB 2.0, 1 x RS-232, 1 x eDP, 1 x GPIO header, 1 x 2-pin DC-in Header 12V

Audio

Realtek® ALC662 HD Audio

Power Requirement

12V DC input 2-pin header, 12V DC input jack

Dimensions

5.83" x 4.02" (148mm x 102mm)

Operating Temperature

32 ~ 104°F (0 ~ 40°C)

Storage Temperature

-4 ~ 185 °F (-20 ~ 85 °C)

OS Software Supported

Windows 10 64-bit 1709 or newer, Windows 10 IoT 2019 Enterprise 64-bit, CentOS 18.10, Fedora 29.1.2, openSUSE 15, Ubuntu 18.04, pfSense 2.4.4, FreeNAS 11.2, RedHat Enterprise 7.5, Andriod x86 8.1_rc2

Global P/N / SKU

2809142

Ordering Options

JNF931G32-4125 (SKU# 2809142A):
Celeron J4125 3.5″ motherboard with 32GB eMMC and flat silver heatsink for directly attaching to surface

JNF931G32-4105 (SKU# 280142B):
Celeron J4105 3.5″ motherboard with 32GB eMMC and flat silver heatsink for directly attaching to surface

Downloads

Datasheet

Ordering Options

JNF931G32-4125 (SKU# 2809142A): Celeron J4125 3.5" motherboard with 32GB eMMC and flat silver heatsink for directly attaching to surface JNF931G32-4105 (SKU# 280142B): Celeron J4105 3.5" motherboard with 32GB eMMC and flat silver heatsink for directly attaching to surface

NF931 – 3.5″ SBC Equipped with Quad Core Intel® Celeron Processor

The NF931 is a 3.5″ Single Board Computer equipped with an Intel® Celeron Quad Core Processor. This board’s small footprint and low power consumption make it both efficient and capable in many industrial applications. The NF931 is an excellent solution for digital signage, retail, automation, and more.

CONTACT US NOW

Board *

Memory

2.5″ SATA SSD

Operating System (Only available if a storage device is selected from above.)

Testing (Only available if memory is included at time of purchase.)

SKU: 2809142 Tags: Industrial Automation, Internet of Things (IoT), POS-Kiosk, Surveillance

Additional information

CPU

Intel® Celeron J4125 Processor Quad Core up to 2.70 GHz, Intel® Celeron J4105 Processor Quad Core up to 2.50 GHz

Memory Type

260-pin DDR4 2400MHz SO-DIMM

Memory Slots

2

Maximum Memory Supported

8GB

Chipset

Integrated in SoC

Integrated Graphics

Intel® HD Graphics 600

Watchdog Timer

10 ~ 255 min/sec

Video

2 x HDMI, 1 x eDP

LAN Ports

1 x Intel® I211-AT Gigabit LAN

Serial ATA (SATA)

1 x SATA III

Storage

Onboard 32GB eMMC

GPIO Interface

1 x GPIO 8-bit

TPM

Optional Onboard TPM 1.2 or 2.0, contact sales for more information.

Extended Interface

1 x Full-Size Mini-PCIe w/ SIM, 1 x M.2 E-Key 2230 (WiFi), 1 x M.2 M-Key 2242/2280 (SATA & PCIe 3.0 x2 NVMe)

Rear I/O

2 x USB 3.1 Gen1, 2 x USB 2.0, 1 x LAN, 2 x HDMI, 1 x SIM, 1 x Line-Out, 1 x DC Input Jack 12V

Internal I/O

2 x USB 2.0, 1 x RS-232, 1 x eDP, 1 x GPIO header, 1 x 2-pin DC-in Header 12V

Audio

Realtek® ALC662 HD Audio

Power Requirement

12V DC input 2-pin header, 12V DC input jack

Dimensions

5.83" x 4.02" (148mm x 102mm)

Operating Temperature

32 ~ 104°F (0 ~ 40°C)

Storage Temperature

-4 ~ 185 °F (-20 ~ 85 °C)

OS Software Supported

Windows 10 64-bit 1709 or newer, Windows 10 IoT 2019 Enterprise 64-bit, CentOS 18.10, Fedora 29.1.2, openSUSE 15, Ubuntu 18.04, pfSense 2.4.4, FreeNAS 11.2, RedHat Enterprise 7.5, Andriod x86 8.1_rc2

Global P/N / SKU

2809142

Ordering Options

JNF931G32-4125 (SKU# 2809142A):
Celeron J4125 3.5″ motherboard with 32GB eMMC and flat silver heatsink for directly attaching to surface

JNF931G32-4105 (SKU# 280142B):
Celeron J4105 3.5″ motherboard with 32GB eMMC and flat silver heatsink for directly attaching to surface

Downloads

Datasheet

Ordering Options

JNF931G32-4125 (SKU# 2809142A): Celeron J4125 3.5" motherboard with 32GB eMMC and flat silver heatsink for directly attaching to surface JNF931G32-4105 (SKU# 280142B): Celeron J4105 3.5" motherboard with 32GB eMMC and flat silver heatsink for directly attaching to surface
