Additional information
| CPU | AMD Ryzen™ AI 300 Series, 4X4 BOX-AI350 (AMD Ryzen™ AI 7 350, 8Cores, up to 5.0GHz), 4X4 BOX-AI340 (AMD Ryzen™ AI 5 340, 6Cores, up to 4.8GHz) |
|---|---|
| Memory Type | 262-pin DDR5 5600MHz SO-DIMM |
| Memory Slots | 2 |
| Maximum Memory Supported | 96GB |
| Integrated Graphics | AMD Radeon™ Graphics |
| Watchdog Timer | 256 Segments, 0, 1, 2, …255sec |
| Video | 2 x HDMI 2.1, 2 x DisplayPort 1.4a (via USB Type-C) |
| LAN Ports | 1 x Realtek RTL8125B 2.5 GbE, 1 x Realtek RTL8111 GbE |
| Storage | 1 x M.2 M-Key 2242/2280 PCIe Gen4 x4, 1 x M.2 M-Key 2242 PCIe Gen4 x4 |
| TPM | AMD FW TPM |
| Extended Interface | 1 x WiFi 6E 802.11ax + BT 5.2 (M.2 E-Key 2230 PCIe Gen4 x1) |

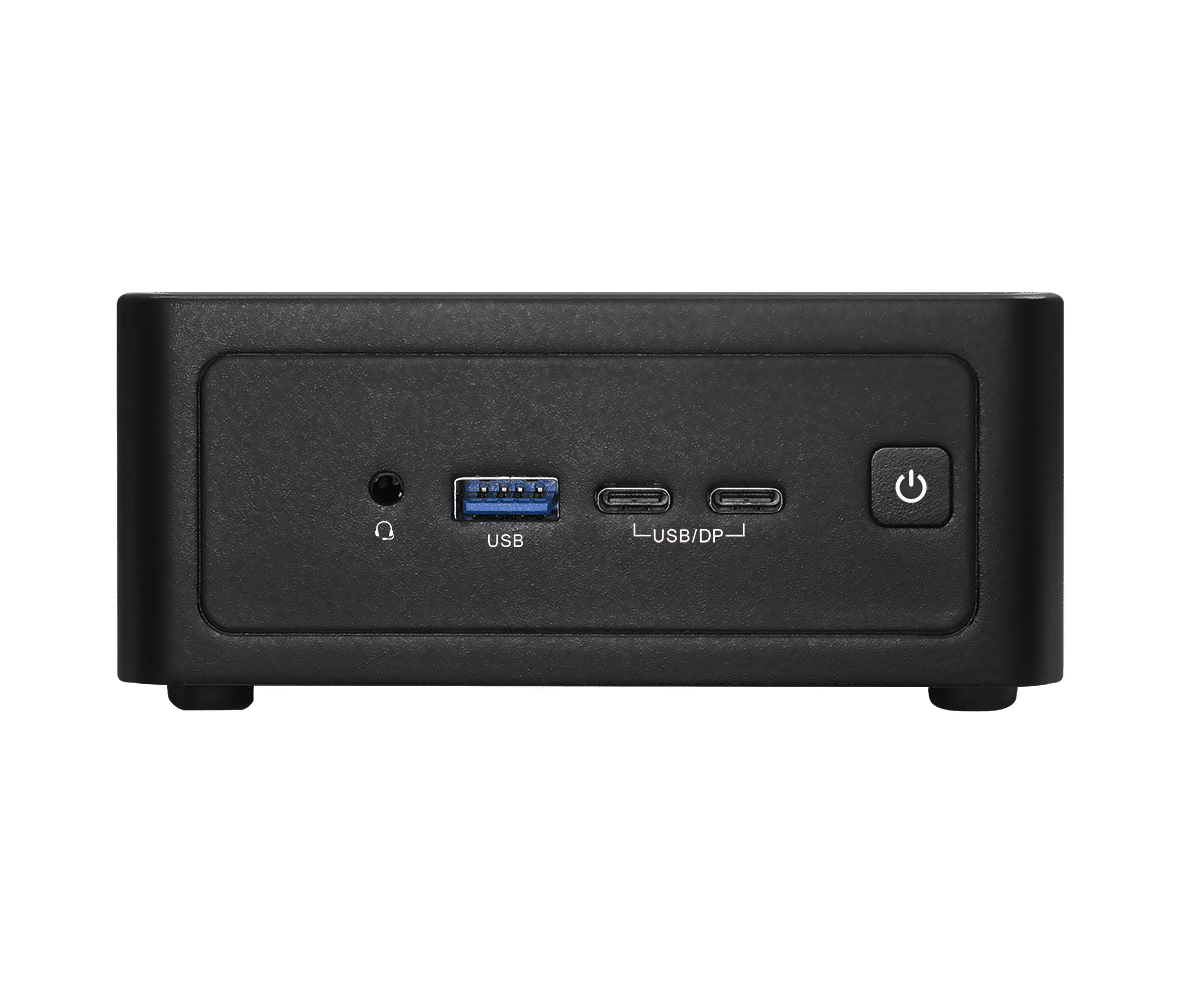

| Front I/O | 1 x USB 3.2 Gen2 (Type-A), 2 x USB4 (Supports DP1.4a), 1 x Audio |

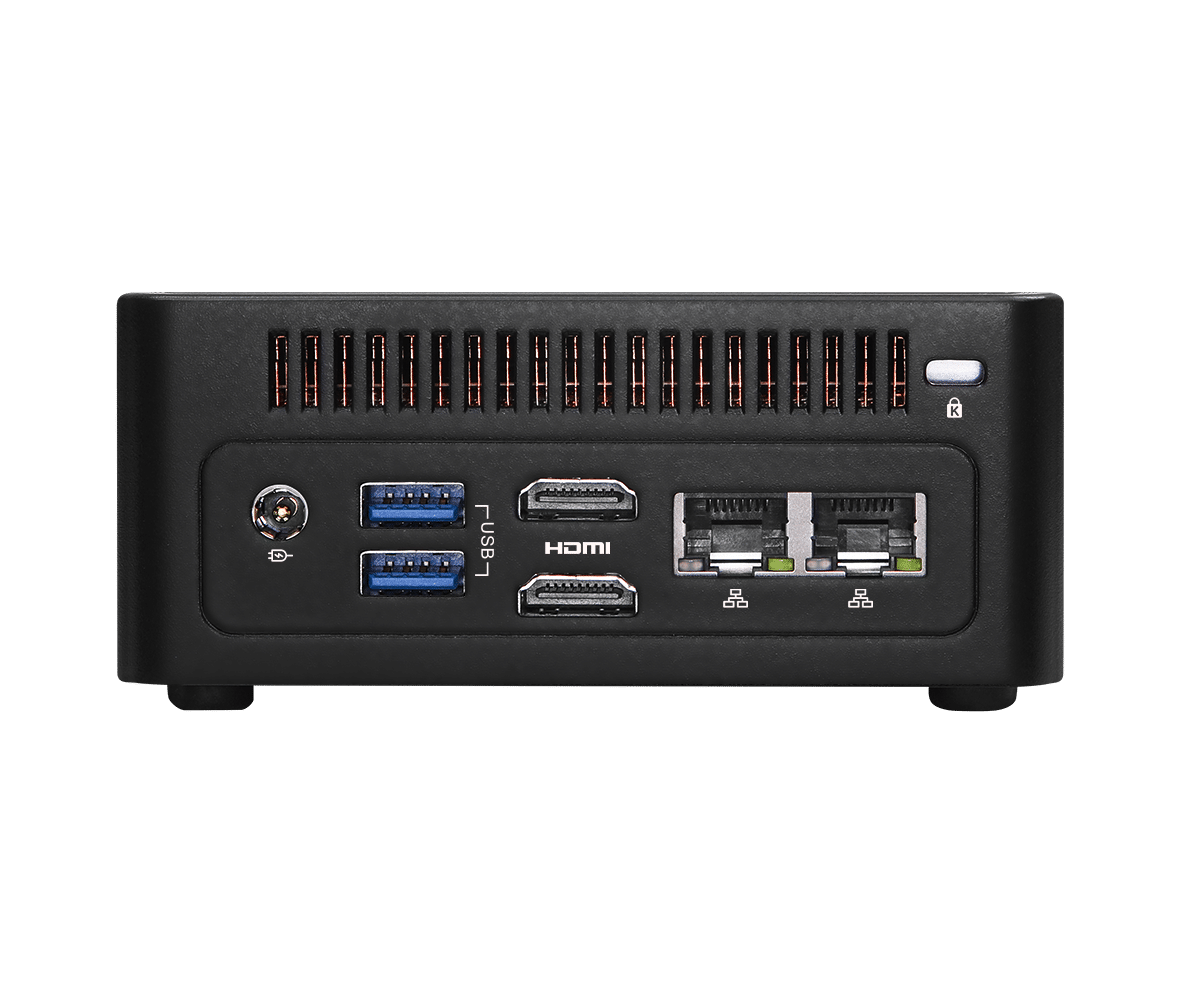

| Rear I/O | 2 x HDMI, 2 x LAN, 2 x USB 3.2 Gen1, 1 x DC-Jack |
| Audio | Realtek ALC256 HD Audio |
| Power Requirement | 12 ~ 24V DC Input |
| Dimensions | 4.63" x 4.33" x 1.93" (117.5mm x 110.0mm x 49mm) |
| Weight | 1.0 kg (2.2 lbs) |
| Mounting | VESA Mount |
| Operating Temperature | 0 ~ 40°C (32 ~ 104°F) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Relative Humidity | 5 ~ 90% |
| OS Software Supported | Windows 11 64-bit |
| Certification | CE, FCC |
| Global P/N / SKU | 1708631 |
