Additional information
| CPU | Intel® Atom™ x7433RE Processor |
|---|---|
| Memory Type | 262-pin DDR5 4800MHz SO-DIMM |
| Memory Slots | 1 |
| Maximum Memory Supported | 32GB |
| Chipset | Integrated in SoC |
| Integrated Graphics | Intel® UHD Graphics |
| Video | 1 x HDMI, 1 x DP++, 1 x USB-C (DP Alt Mode, DP 1.4a); triple-display capable |
| LAN Ports | 2 x Intel® I226 Gigabit LAN (Up to 2.5GbE) |
| Storage | 1 x M.2 M-Key 2280 PCIe Gen3 x4 |
| TPM | 2.0 (Optional) |
| Extended Interface | 1 x M.2 E-Key 2230 for Wi-Fi/Bluetooth module |

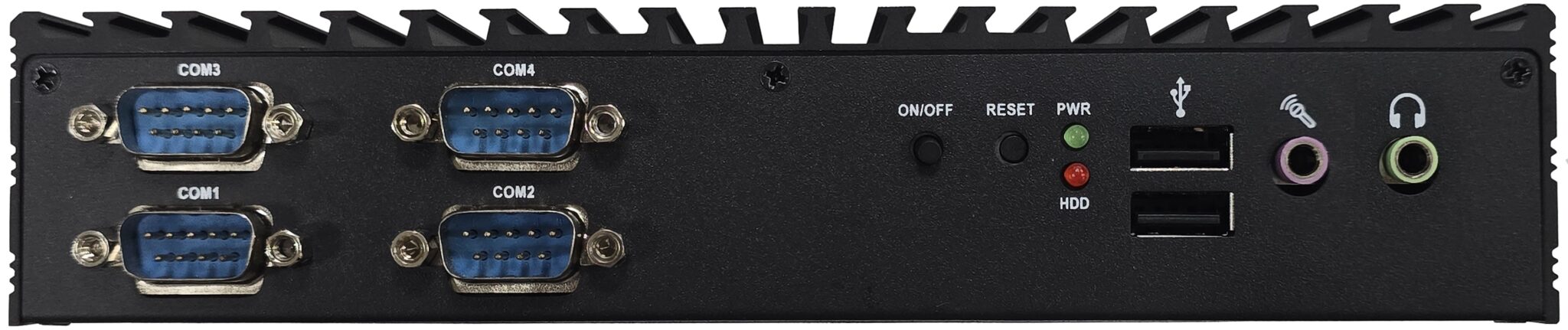

| Front I/O | 2 x RS-232/422/485, 2 x RS-232, 2 x USB 2.0 |

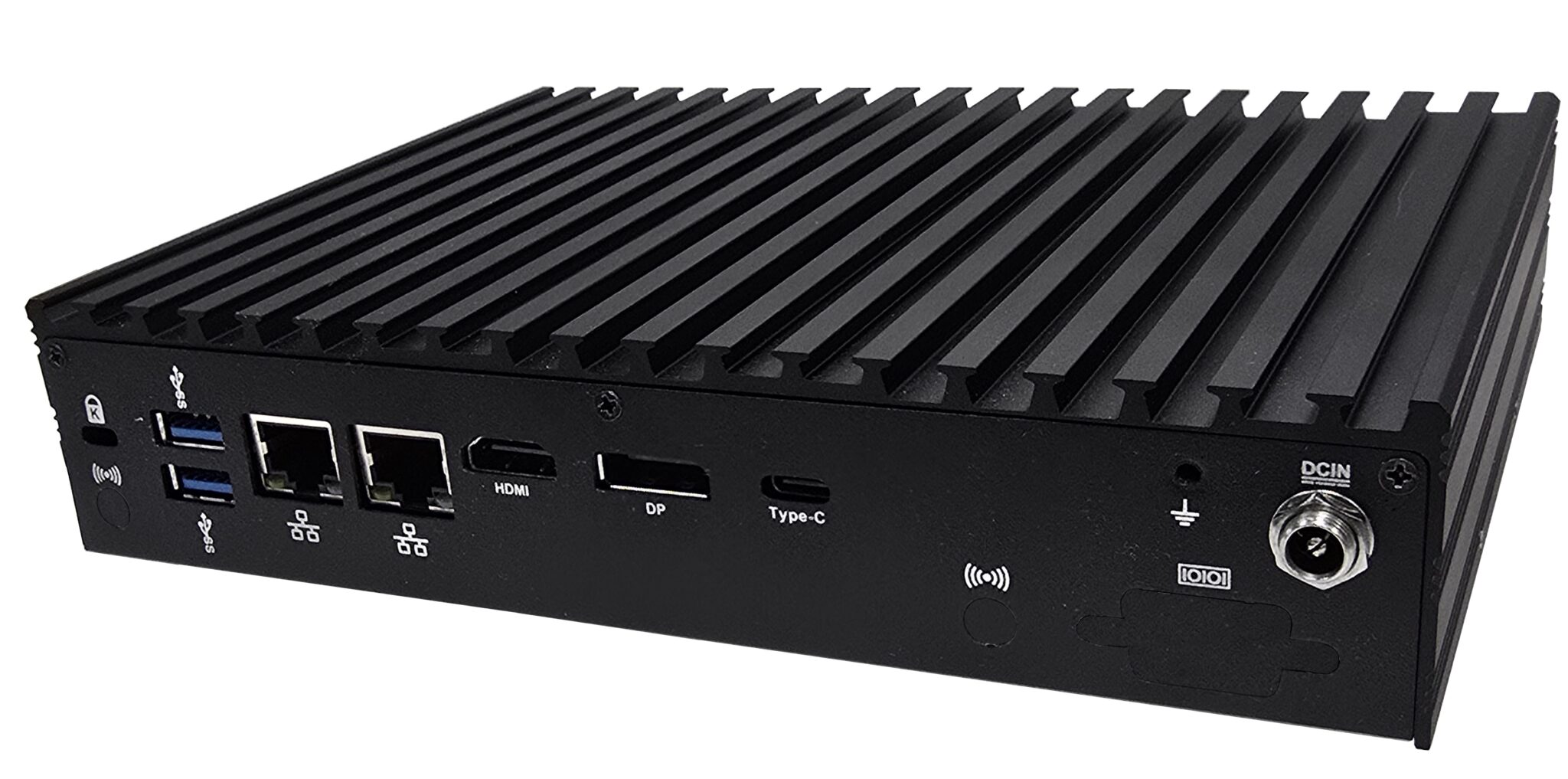

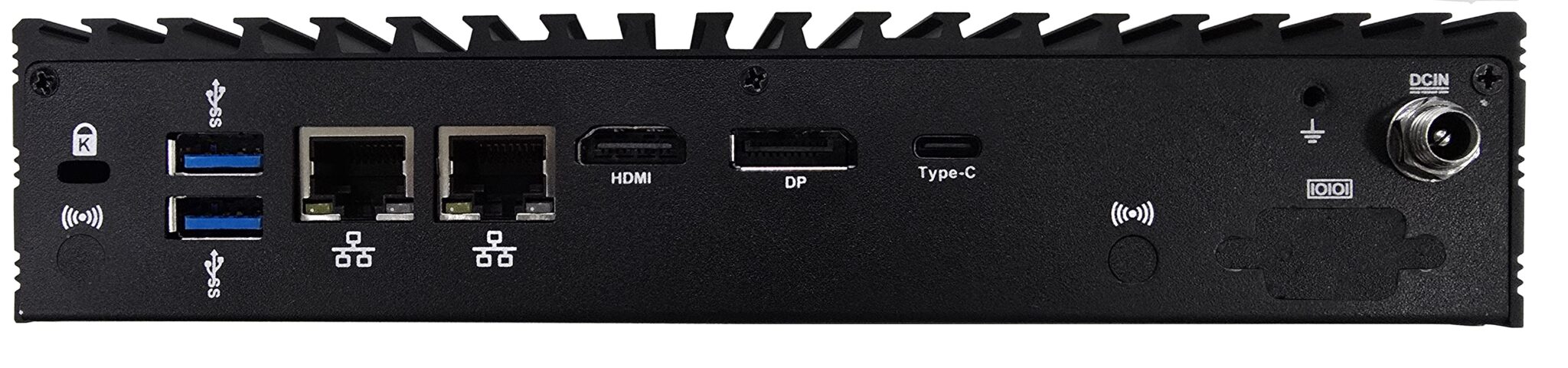

| Rear I/O | 2 x USB 3.2 Gen2, 2 x LAN, 1 x HDMI, 1 x DP, 2 x WiFi Port (option), 1 x USB Type-C (DP Alt. mode), 1 x DC-Jack 9 ~ 35V, 1 x COM Port (option) |
| Power Requirement | DC Input 9 ~ 35V; 12V / 84W adapter included |
| Dimensions | 5.71" x 7.87" x 1.61" (145mm x 200mm x 41mm) |
| Weight | 0.95 kg (2.09 lbs) |
| Operating Temperature | -10 ~ 50°C (14 ~ 122°F) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Relative Humidity | 0 ~ 90% @ 40°C, non-condensing |
| OS Software Supported | Windows 10 64-bit, Windows 11 64-bit, Linux |
| Global P/N / SKU | 1708635 |
