Commell LV-6712 – Mini-ITX Motherboard with Intel® Tiger Lake UP3 Processor

Mini-ITX Motherboard

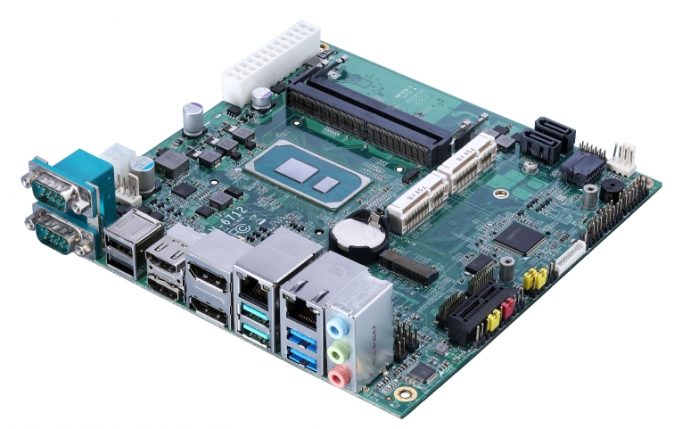

The Commell LV-6712 is a Mini-ITX motherboard, equipped with an Intel® Tiger Lake UP3 Processor. This board has many expansion options and I/O, allowing for full functionality with its Mini-ITX form factor. The LV-6712 has PCIe Gen4 capability through the M.2 expansion, making it an excellent solution for industrial computing needs.

Additional information

CPU

Intel® Tiger Lake UP3 Processor

Memory Type

260-pin DDR4 3200MHz SO-DIMM

Memory Slots

2

Maximum Memory Supported

64GB

Integrated Graphics

Intel® Iris® Xe Graphics

Watchdog Timer

Generates a system reset with internal timer for 1 min/s ~ 255 min/s

Video

1 x LVDS (Onboard 18/24-bit single/dual channel +3.3V/ +5V/ +12V LVDS), 2 x HDMI, 2 x DisplayPort

LAN Port

1 x Intel® I219-LM Gigabit PHY LAN, 1 x Intel® I225-LM Gigabit LAN (up to 2.5GbE)

Serial ATA (SATA)

2 x SATA III

GPIO Interface

1 x GPIO

Extended Interface

2 x Mini-PCIe (Minicard 2 supports mSATA, can't use mSATA and SATA3-2 at the same time), 1 x M.2 2280 M-Key with spport for PCIe Gen4, 1 x PCIe x1 slot

Rear I/O

4 x USB 3.2 Gen 2, 2 x USB 2.0, 2 x LAN, 2 x RS232/422/485, 1 x Audio, 2 x HDMI, 2 x DisplayPort

Internal I/O

2 x SATA III, 4 x RS232, 2 x USB 2.0, 1 x GPIO, 1 x PS/2, 1 x SMBus, 1 x Audio, 1 x LVDS, 1 x LCD Inverter

Audio

Realtek ALC262 HD Audio

Power Requirement

24-pin ATX Power Supply or 4-pin DC input 9 ~ 35V

Dimensions

6.7" x 6.7" (170mm x 170mm)

Operating Temperature

32 ~ 140˚F (0 ~ 60˚C)

Storage Temperature

-4 ~ 176° F (-20 ~ 80° C )

Relative Humidity

10 ~ 90% (non-condensing)

OS Software Supported

Windows 10 64-bit

Global P/N / SKU

2809127

Ordering Options

LV-67127 (SKU# 2809127A):
Mini-ITX board with i7-1185G7E Processor with CPU cooler

LV-6712C (SKU# 2809127B):
Mini-ITX board with Celeron® 6305E Processor with CPU cooler

Note: For other Tiger Lake UP3 CPUs (i7-1185GRE, i5-1145GRE, i5-1145G7E, i3-1115GRE, i3-1115G4E), please contact sales.

Downloads

Ordering Options

LV-67127 (SKU# 2809127A): Mini-ITX board with i7-1185G7E Processor with CPU cooler LV-6712C (SKU# 2809127B): Mini-ITX board with Celeron® 6305E Processor with CPU cooler Note: For other Tiger Lake UP3 CPUs (i7-1185GRE, i5-1145GRE, i5-1145G7E, i3-1115GRE, i3-1115G4E), please contact sales.
