Additional information
| CPU | AMD Ryzen™ Embedded R-Series (R2314, 4C, 2.1GHz, 12-35W) |
|---|---|
| Memory Type | 260-pin DDR4 2666MHz (ECC/Non-ECC) SO-DIMM |
| Memory Slots | 2 |
| Maximum Memory Supported | 64GB |
| Integrated Graphics | AMD Radeon™ Graphics |
| Watchdog Timer | 256 Segments, 0, 1, 2, …255sec |
| Video | 4 x HDMI 2.0b |
| LAN Ports | 1 x Realtek® RTL8111H GbE, 1 x Intel® I210 GbE, 1 x Realtek® RTL8125BG 2.5 GbE supports PoE+ (optional) |
| Storage | 1 x M.2 M-Key 2242/2280 PCIe Gen3 x4 |
| TPM | TPM 2.0 onboard IC |
| Extended Interface | 1 x M.2 E-Key 2230 PCIe Gen3 x1, 1 x M.2 B-Key 3042/3052 PCIe Gen3 x1, 1 x SIM socket (connected to M.2 B-Key) |

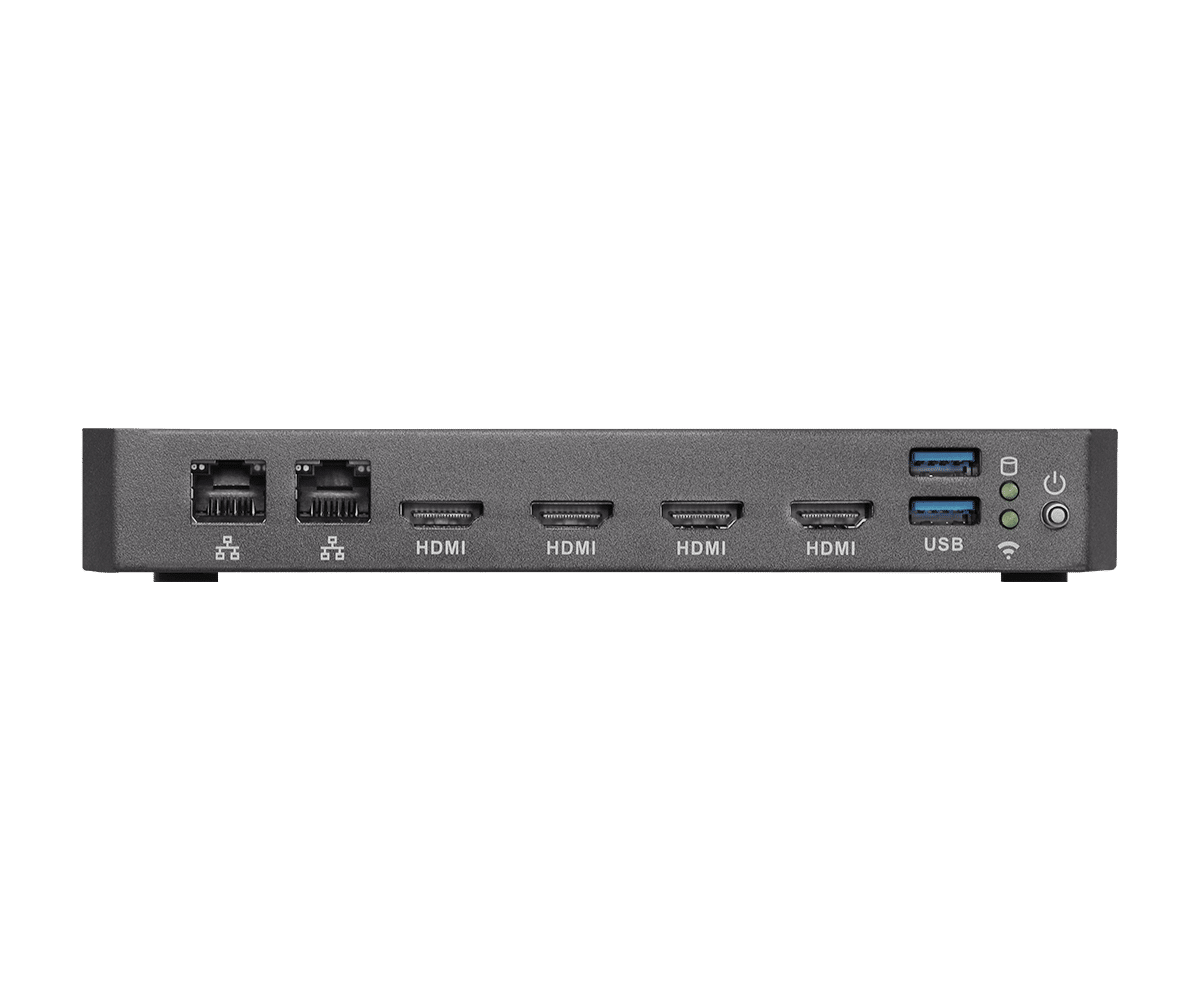

| Front I/O | 2 x LAN, 4 x HDMI, 2 x USB 3.2 Gen2 |

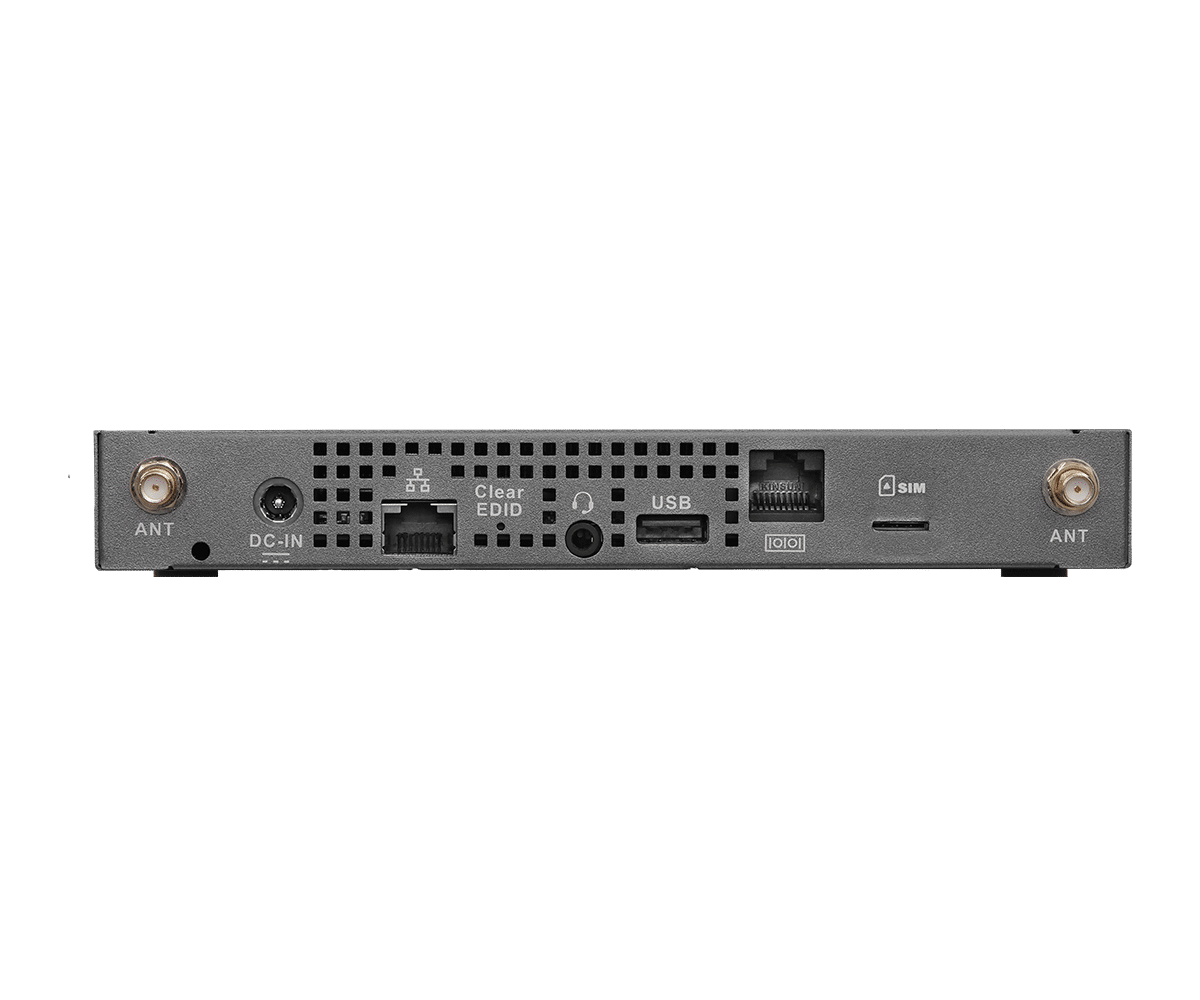

| Rear I/O | 1 x LAN, 1 x USB 2.0, 1 x RS-232 (RJ50), 1 x Audio, 1 x SIM, 1 x DC-Jack |
| Audio | Realtek ALC256 HD Audio |
| Power Requirement | 12V~19V DC-In |
| Dimensions | 7.1" x 6.9" x 1" (182.2mm x 175.2mm x 25mm) |
| Weight | 0.75 kg (1.65 lbs) |
| Mounting | VESA mount/Wall mount/Din Rail |
| Operating Temperature | 0 ~ 40°C (32 ~ 104°F) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Relative Humidity | 5 ~ 90% |
| OS Software Supported | Windows 11 |
| Certification | CE, FCC |
| Global P/N / SKU | 1708632 |
