Additional information
| CPU | Soldered onboard Intel® Atom™ Processor x7000 for extended temperature or Intel® processor N Series for commercial temperature |
|---|---|
| Memory Type | 262-pin DDR5 4800MHz SO-DIMM |
| Memory Slots | 1 |
| Maximum Memory Supported | 16GB |
| Watchdog Timer | 1 ~ 255 levels reset |
| Digital I/O | 8-bit Programmable |
| Integrated Graphics | Intel® 12th Gen UHD Graphics |
| LAN Ports | 2 x Intel® I226 2.5 GbE |
| Serial ATA (SATA) | 1 x SATA III |
| Extended Interface | 1 x M.2 M-key 2280 (PCIe x1 / SATA 3.0), 1 x M.2 E-key 2030 (PCIe x1 / USB 2.0), 1 x M.2 B-key 3042/3052 (PCIe x1 / USB 3.2) |
| Internal I/O | 2 x RS-232/422/485, 4 x USB 2.0, 1 x DIO, 1 x LVDS |

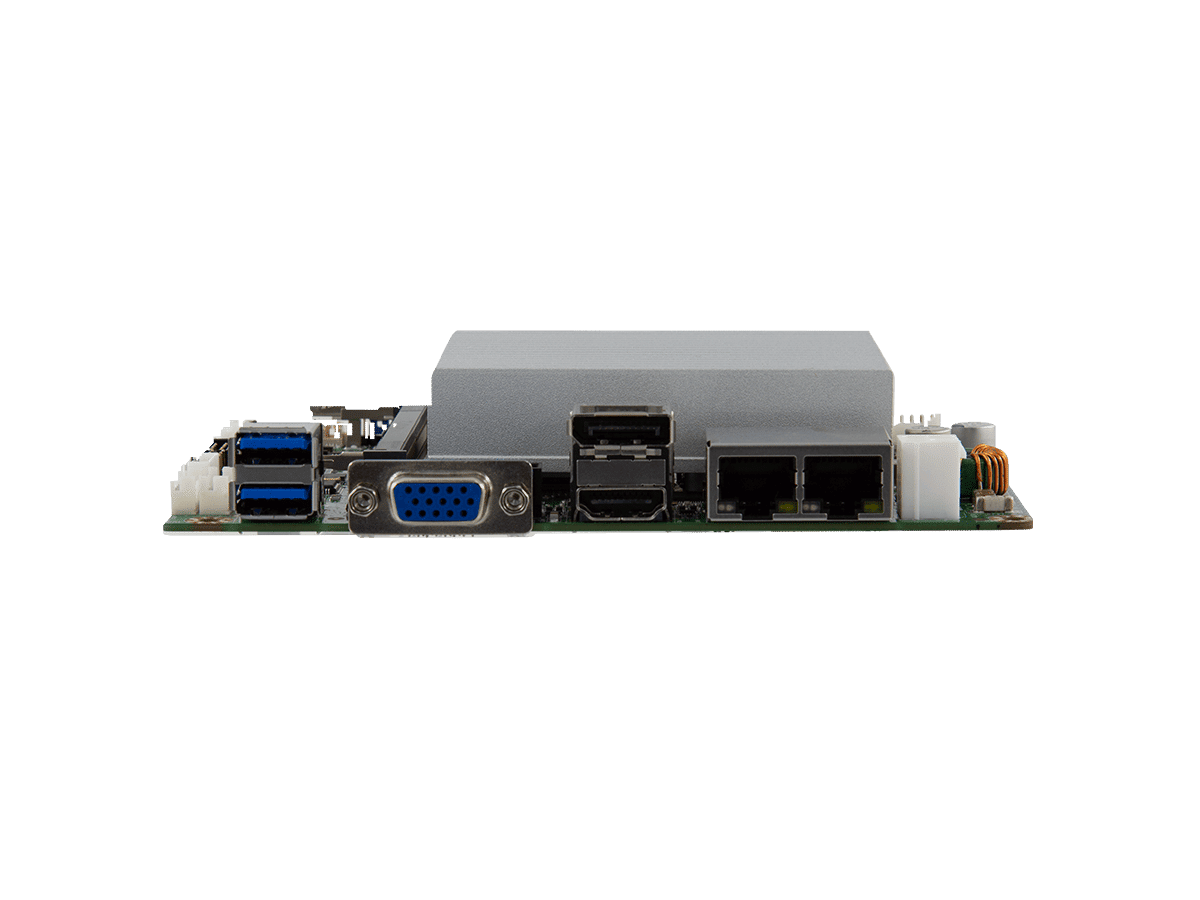

| Rear I/O | 2 x LAN, 1 x HDMI, 1 x DP, 1 x VGA, 2 x USB 3.2 Gen2 |
| Audio | Realtek HD Audio |
| Power Requirement | DC input 12V |
| Dimensions | 5.7" x 4.0" (146mm x 102mm) |
| Operating Temperature | -40 ~ 85°C (-40 ~ 185°F, WT-series), -20 ~ 50°C (-4 ~ 122°F) |
| Relative Humidity | 10 ~ 95% @ 85°C (non-condensing, WT-series), 10 ~ 95% @ 50°C (non-condensing) |
| OS Software Supported | Windows 10 IoT, Windows 11 IoT, Linux Ubuntu |
| Global P/N / SKU | 3308953 |
