IEC-3905 – Digital Signage Player with Intel® 13th Gen Core™ Processor

The IEC-3605 is a compact digital signage player equipped with and onboard Intel® 13th Gen Raptor Lake Processor. With an extended operating temperature and small foot print, this system is an excellent solution for deployment in harsh environments where space is at a premium. The IEC-3605 has two HDMI ports capable of two simultaneous independent displays at 4K/60Hz.

Additional information

CPU

Soldered Onboard Intel® Raptor Lake Core i5-1335UE 1.3GHz (Base) / 4.5GHz (Turbo), optional i7-1365UE, i3-1315UE, or U300E by OEM Request

Memory Type

262-pin DDR5 4800MHz SO-DIMM

Memory Slots

2

Integrated Graphics

Intel® Iris Xe Graphics

Watchdog Timer

1 ~ 255 levels reset

Video

2 x HDMI

LAN Ports

1 x Intel® i226 GbE (support vPro & AMT, i7 and i5 CPU only)

WiFi

Supports WiFi 6E

Storage

1 x M.2 M-Key 2280 Slot

TPM

Supports dTPM 2.0

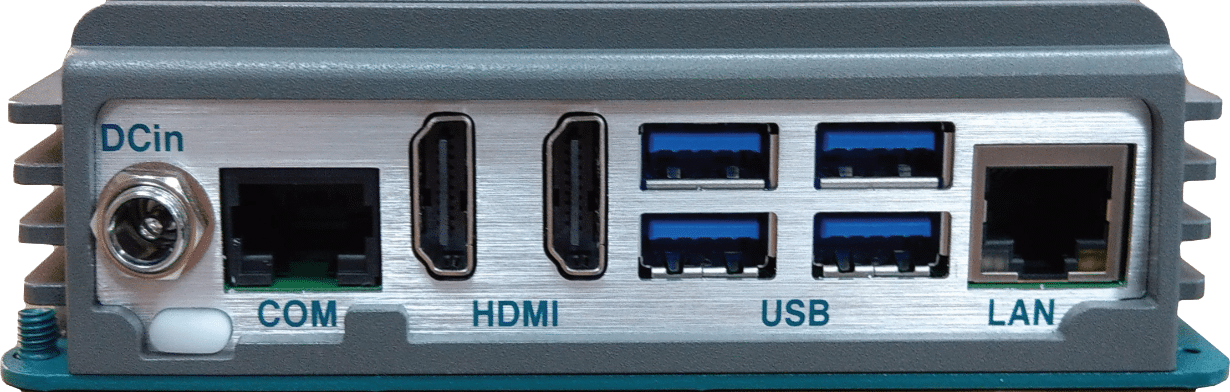

Front I/O

1 x RS-232 with RJ45 Interface, 4 x USB 3.0, 1 x LAN, 2 x HDMI, 1 x DC-In

Power Requirement

24V DC Input

Dimensions

5.12” x 4.88” x 1.37” (130mm x 124mm x 35mm)

Weight

0.73 kg (1.61 lbs)

Construction

Aluminum Alloy

Mounting

Wall-mount

Operating Temperature

-20 ~ 70°C (-4 ~ 158°F) ambient w/ airflow

Storage Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

Relative Humidity

10 ~ 95% @ 70°C (non-condensing)

Vibration

1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operation

Shock

Operating 10G (11ms), non-operating 20G

OS Software Supported

Windows 10 & 11 IoT, Linux

Certification

CE, FCC Class A

Global P/N / SKU

1708627

Ordering Options

IEC-3905-1335UE (SKU# 1708627):
Digital Signage Player with Intel® Core™ i5-1335UE, w/ 2 x HDMI, 60W power adapter, 8GB RAM, 120G SSD

Contact Sales for custom SSD and RAM configuration options

Other Processors available by OEM Request:
Intel® Core™ i7-1375UE, Intel® Core™ i3-1315UE, Intel® Processor U300E

Downloads

Datasheet

Ordering Options

IEC-3905-1335UE (SKU# 1708627): Digital Signage Player with Intel® Core™ i5-1335UE, w/ 2 x HDMI, 60W power adapter, 8GB RAM, 120G SSD Contact Sales for custom SSD and RAM configuration options Other Processors available by OEM Request: Intel® Core™ i7-1375UE, Intel® Core™ i3-1315UE, Intel® Processor U300E
