Additional information
| CPU | 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W) |
|---|---|
| Chipset | Intel® Q670 |
| Memory Type | 288-pin DDR5-4400 non-ECC Long-DIMM |
| Memory Slots | 4 |
| Maximum Memory Supported | 192GB |
| Integrated Graphics | Intel® UHD Graphics |
| Audio | HD Codec Audio |
| Video | 1 x VGA, 1 x DVI-D, 1 x HDMI 2.0 |
| LAN Ports | 1 x 10/100/1000 Mbps (Intel® I210-AT), 1 x 10/100/1000 Mbps (Intel® I219-V) |
| Serial ATA (SATA) | 4 x SATA-600 with RAID 0/1/5/10 |
| TPM | Not included by default; supports Intel® PTT as default |
| Watchdog Timer | 255 levels, 1 to 255 sec |
| Extended Interface | 1 x M.2 Key M 2280 PCIe x4, 1 x M.2 Key E 2230 (PCIe x1 + USB 2.0), 2 x PCIe x16 (Gen4 x16 + Gen3 x4), 3 x PCIe Gen4 x4, 2 x PCI |

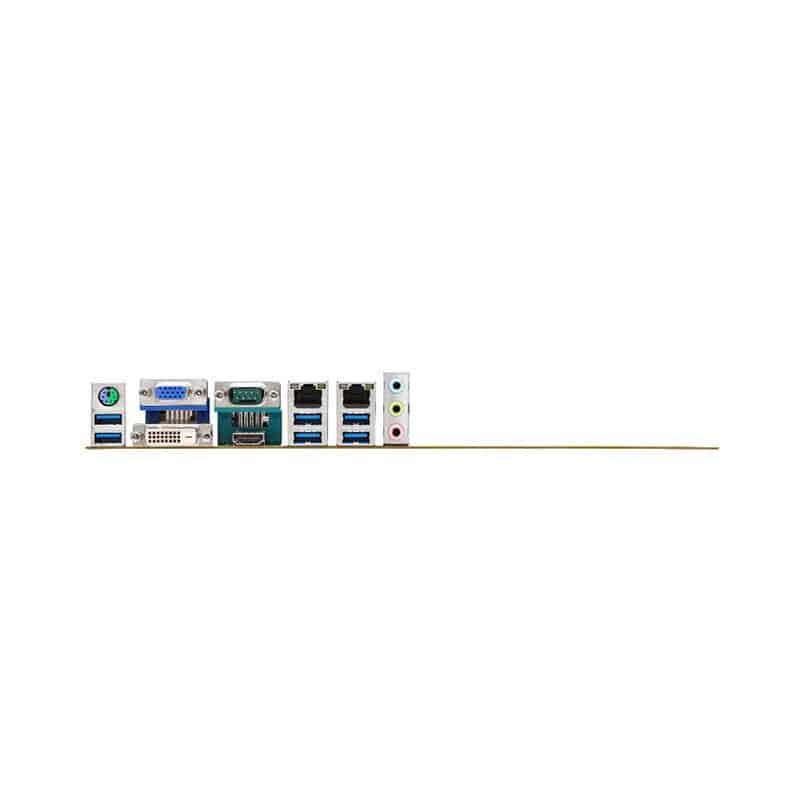

| Rear I/O | 1 x RS-232, 1 x PS/2, 6 x USB 3.2 Gen1x1, 1 x DVI, 1 x VGA, 1 x HDMI, 2 x LAN, 1 x MIC/Line-In/Line-Out |
| Internal I/O | 3 x RS-232, 1 x RS-232/422/485, 1 x RS-232/485, 2 x USB 3.2 Gen1x1, 4 x USB 2.0, 1 x USB 2.0 (internal 180D Type-A) |
| Power Requirement | 24 + 8-pin ATX connector |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) |
| Relative Humidity | 10 ~ 95% (non-condensing) |
| OS Software Supported | Windows 11 64-bit |
| Global P/N / SKU | 2809205 |
