Additional information
| CPU | Intel® Atom Processor X Series (Amston Lake) |
|---|---|
| Memory Type | 262-pin DDR5 4800MHz SO-DIMM |
| Memory Slots | 1 |
| Maximum Memory Supported | 32GB |
| Watchdog Timer | Generates a system reset with internal timer for 1 min/s ~ 255 min/s |
| GPIO Interface | Onboard programmable 8-bit Digital I/O interface |
| Integrated Graphics | Intel® UHD Graphics |
| Video | 1 x DisplayPort++, 1 x HDMI, 1 x Type-C(DP Alt. Mode), 1 x LVDS |
| LAN Ports | 2 x Intel® I226 Gigabit LAN (Up to 2.5GbE) |
| Serial ATA (SATA) | 1 x Serial ATA3 (for OEM) |
| Extended Interface | 1 x M.2 Key M 2280 support Gen3 PCIe x4 for NVMe, 1 x M.2 Key E 2230 for Wi-Fi and Bluetooth |
| Internal I/O | 1 x SATA3(for OEM), 2 x RS232/422/485, 4 x RS232, 2 x USB2.0, 1 x LVDS, 1 x LCD inverter connector, 1 x GPIO, 1 x SMBus, 1 x Audio (MIC-in, Line-out), 1 x Speaker Out with Amp |

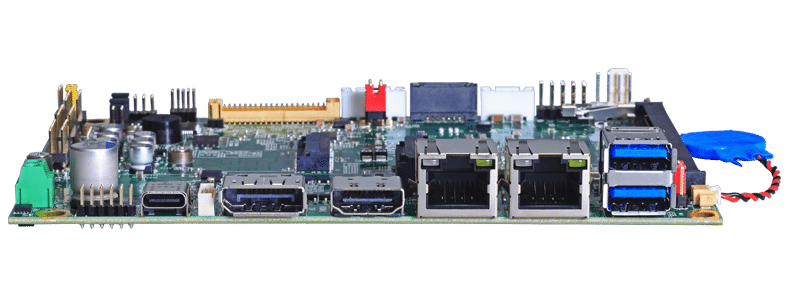

| Rear I/O | 1 x DisplayPort++, 1 x HDMI, 2 x USB 3.2 Gen2, 2 x LAN, 1 x Type-C (DP Alt. Mode) |
| Audio | Realtek ALC888S HD Audio with 3 Watt amplifier for 4 ohm speaker |
| Power Requirement | DC input 9~35V |
| Dimensions | 5.75" x 3.98" (146mm x 101mm) |
| Operating Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Relative Humidity | 10% to 90% (non condensing) |
| OS Software Supported | Windows 10 Professional 64-bit, Windows 11 |
| Global P/N / SKU | 3309001 |
