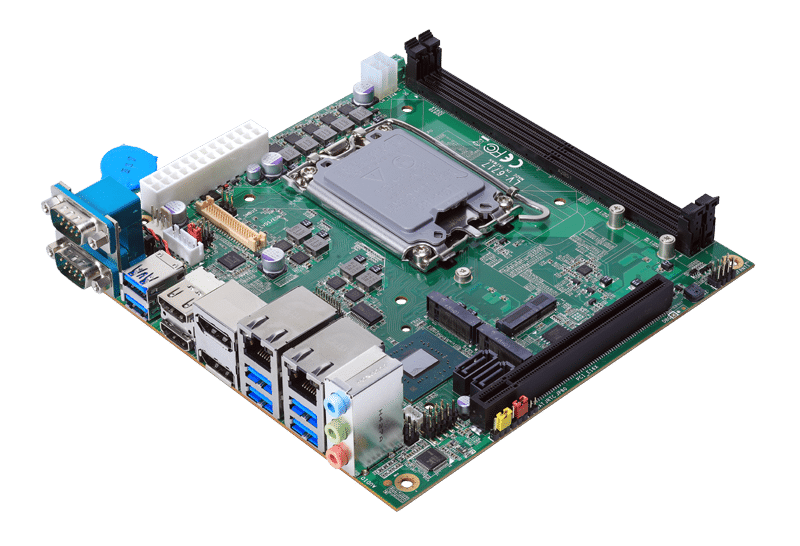

LV-6717 – Mini-ITX Motherboard with Intel® W880 Chipset for Intel® Core™ Ultra Processors

The LV-6717 is a Mini-ITX motherboard with support for Intel® Arrow Lake-S Core™ Ultra Processors. With full desktop performance in a small form factor and 5th generation PCIe expandability, this motherboard is a powerful and modern industrial solution. The LV-6717 has quad-display support and expansion options allowing for deployment across many sectors where space is at a premium.

Additional information

CPU

Intel® Core™ Ultra Arrow Lake-S Processors

CPU Socket

LGA1851

Memory Type

288-pin DDR5 up to 6400MHz DIMM with ECC and Non-ECC Support

Memory Slots

2

Maximum Memory Supported

128GB

Chipset

Intel® W880

Integrated Graphics

Intel® Xe Graphics

Watchdog Timer

Generates a system reset with internal timer for 1 min/s ~ 255 min/s

LAN Ports

1 x Intel® I226-LM 2.5GbE, 1 x Intel® I226-V 2.5GbE

Storage

2 x SATA III, 1 x M.2 (Key M 2280) support PCIe Gen4 for NVMe, 1 x M.2 (Key M 2280) support PCIe Gen5 for NVMe

GPIO Interface

Onboard programmable 8-bit Digital I/O interface

Extended Interface

1 x M.2 (Key M 2280) support PCIe Gen4, 1 x M.2 (Key M 2280) support PCIe Gen5, 1 x M.2 2230 Key E for Wi-Fi and Bluetooth, 1 x PCIe x16 Slot (support Gen5)

Rear I/O

6 x USB 3.2 Gen2, 2 x LAN, 2 x RS-232/422/485, 1 x Audio, 2 x HDMI, 2 x DisplayPort++

Internal I/O

2 x SATA III, 2 x RS-232, 2 x USB 2.0, 1 x GPIO, 1 x SMBus, 1 x Audio, 1 x LCD Inverter, 1 x LVDS

Audio

Realtek ALC888S HD Audio

Power Requirement

Standard 24-pin ATX power supply and 4-pin 12V or DC input 12V

Dimensions

6.69" x 6.69" (170mm x 170mm)

Operating Temperature

0 ~ 60° C (32 ~ 140° F)

Storage Temperature

-20 ~ 80 °C (-4 ~ 176 °F)

Relative Humidity

10 ~ 90% (non-condensing)

OS Software Supported

Windows 10 64-bit, Windows 11 64-bit

Global P/N / SKU

2809072

Ordering Options

LV-6717 (SKU# 2809072):
Mini-ITX Motherboard with Intel® W880 Chipset

Downloads

Datasheet

Ordering Options

LV-6717 (SKU# 2809072): Mini-ITX Motherboard with Intel® W880 Chipset

LV-6717 – Mini-ITX Motherboard with Intel® W880 Chipset for Intel® Core™ Ultra Processors

The LV-6717 is a Mini-ITX motherboard with support for Intel® Arrow Lake-S Core™ Ultra Processors. With full desktop performance in a small form factor and 5th generation PCIe expandability, this motherboard is a powerful and modern industrial solution. The LV-6717 has quad-display support and expansion options allowing for deployment across many sectors where space is at a premium.

CONTACT US NOW

Board *

CPU

Memory

M.2 NVMe SSD

2.5″ SATA SSD

Operating System (Only available if a storage device is selected from above.)

Testing (Only available if memory is included at time of purchase.)

SKU: 2809072 Tags: Arrow Lake-S, Industrial Automation, mini boards, Mini-ITX, small form factor
