M2-BM210 – i210-AT Gigabit Ethernet M.2 Card

The M2-BM210 using an M.2 B-M interface to supply Gigabit Ethernet to any Motherboard or PC with a 2280/2260/2253/2242/2230 slot onboard. With support for WOL, this card offers low power consumption and high performance.

Additional information

Solution

Ethernet

Form Factor

M.2 (B-M Key) 2280/2260/2252/2242/2230

Interface

M.2

Controller

Intel® I210-AT Gigabit Ethernet

Transfer Rate

1000 Mb/s 100 Mb/s, or 10 Mb/s

Compliance

IEEE 802.3 Ethernet interface for 1000GBase-T, 100Base-T, and 10Base-TX applications (802.3, 802.3u, 802.3ab).

Dimensions

22mm x 80/60/52/42/30mm

Operating Temperature

0 ~ 60-° C (32-° F ~ 140-° F)

Storage Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

OS Software Supported

Windows 7/8/8.1/10 32bit; Windows 7/8/8.1/10/11 64bit; Windows Server 2012 R2; Linux

Global P/N / SKU

1507985

Ordering Options

1507985: M2-BM 210

Downloads

DATASHEET

Ordering Options

1507985: M2-BM 210

M2-BM210 – i210-AT Gigabit Ethernet M.2 Card

The M2-BM210 using an M.2 B-M interface to supply Gigabit Ethernet to any Motherboard or PC with a 2280/2260/2253/2242/2230 slot onboard. With support for WOL, this card offers low power consumption and high performance.

CONTACT US NOW

SKU: 1507985 Tags: embedded, GbE Card, industrial, Internet of Things (IoT), isolation, Long Life
Commell Industrial Computing Solutions
M2-BM210 - i210-AT Gigabit Ethernet M.2 Card

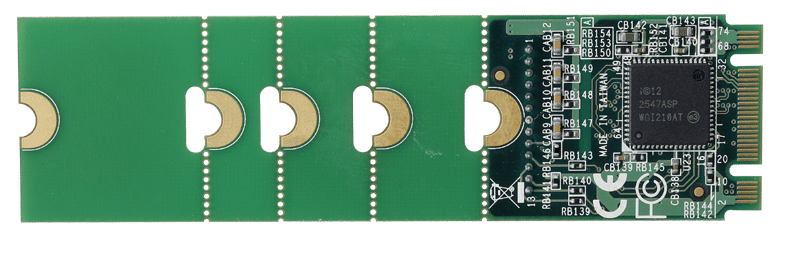

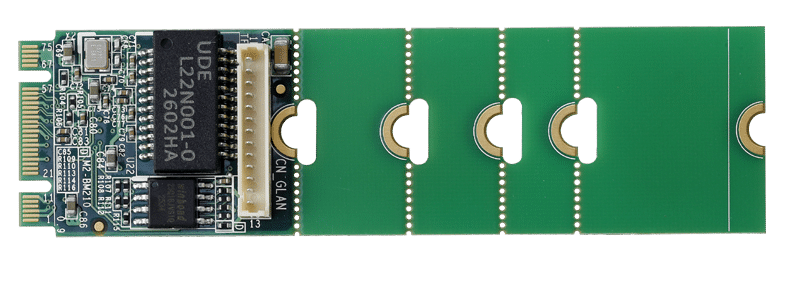

M2-BM210 - i210-AT Gigabit Ethernet M.2 Card - Image 2

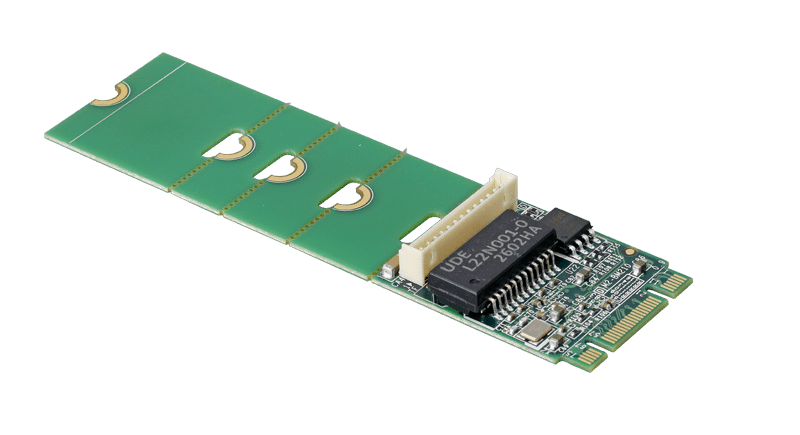

M2-BM210 - i210-AT Gigabit Ethernet M.2 Card - Image 3

Additional information

Solution

Ethernet

Form Factor

M.2 (B-M Key) 2280/2260/2252/2242/2230

Interface

M.2

Controller

Intel® I210-AT Gigabit Ethernet

Transfer Rate

1000 Mb/s 100 Mb/s, or 10 Mb/s

Compliance

IEEE 802.3 Ethernet interface for 1000GBase-T, 100Base-T, and 10Base-TX applications (802.3, 802.3u, 802.3ab).

Dimensions

22mm x 80/60/52/42/30mm

Operating Temperature

0 ~ 60-° C (32-° F ~ 140-° F)

Storage Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

OS Software Supported

Windows 7/8/8.1/10 32bit; Windows 7/8/8.1/10/11 64bit; Windows Server 2012 R2; Linux

Global P/N / SKU

1507985

Ordering Options

1507985: M2-BM 210

Downloads

DATASHEET

Ordering Options

1507985: M2-BM 210
