Additional information
| CPU | 14/13/12th Generation Intel Core Series Processors |
|---|---|
| Memory Type | DDR5 SO-DIMM sockets (Un-buffered and ECC Type memory); Core™ i9/i7:Supports 5600/4800; Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Supports 4800 MHz |
| Memory Slots | 2 |
| Maximum Memory Supported | 96GB |
| Integrated Graphics | Integrated Intel® UHD Graphics 770 for Core™ i9/i7/i5; 730 for Core™ i3; 710 for Pentium®/Celeron® |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Video | 2x DisplayPort Connector: 4096 x 2304 @ 60Hz |
| LAN Ports | 5x GbE RJ45 ports |
| M.2 Expansion Interface | 1x M.2 Key M Type 2280 Socket (Storage/Add-on Card Expansion); 1x M.2 Key M Type 2280 Socket (Storage/Add-on Card Expansion) |
| RAID | Supports RAID 0/1/5/10 |

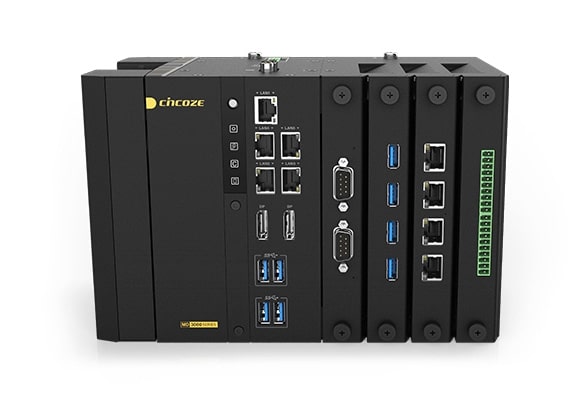

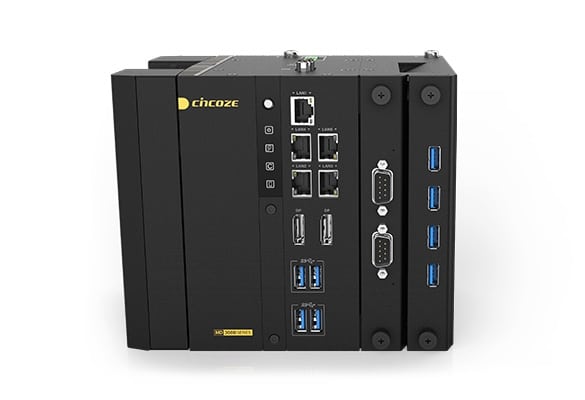

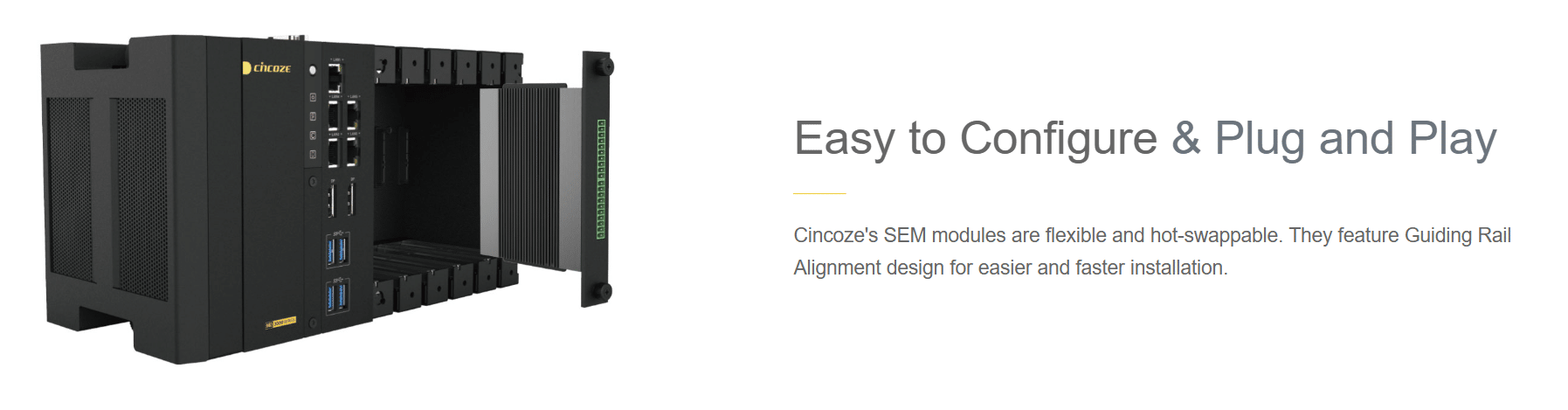

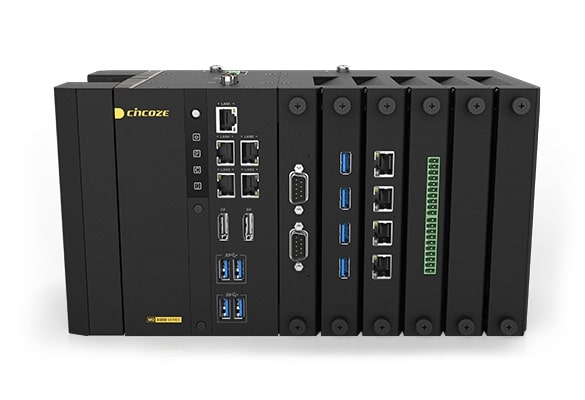

| Expansion Deck | 1x PCIE x16 interface for Optional Scalable Expansion Deck |
| COM | 1 x RS-232/422/285 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB | 4x USB 3.2 Gen1x1 (5Gbps), Type A |
| Power Input | 9 – 48VDC, 3-pin Terminal Block |
| Remote Power On/Off | 1 x Remote Power On/Off, 2-pin Terminal Block |
| Power Consumption | 35W CPU: 195.2W; 65W CPU: 279.4W (test conducted with CPU, 1x RAM, and 1x storage at 100% load during burn-in testing) |
| Inrush Current (Peak) | 35W CPU: 9.0A@24V; 64W CPU: 9.025A@24V |
| Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V; Protection Type: shut down operation voltage, re-power on at the preset level to recover |
| Over Current Protection | 15A |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| MTBF | 356,683 hours |
| Dimensions | 135.5 x 132 x 152.2 mm |
| Weight | 3.03 Kg |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |

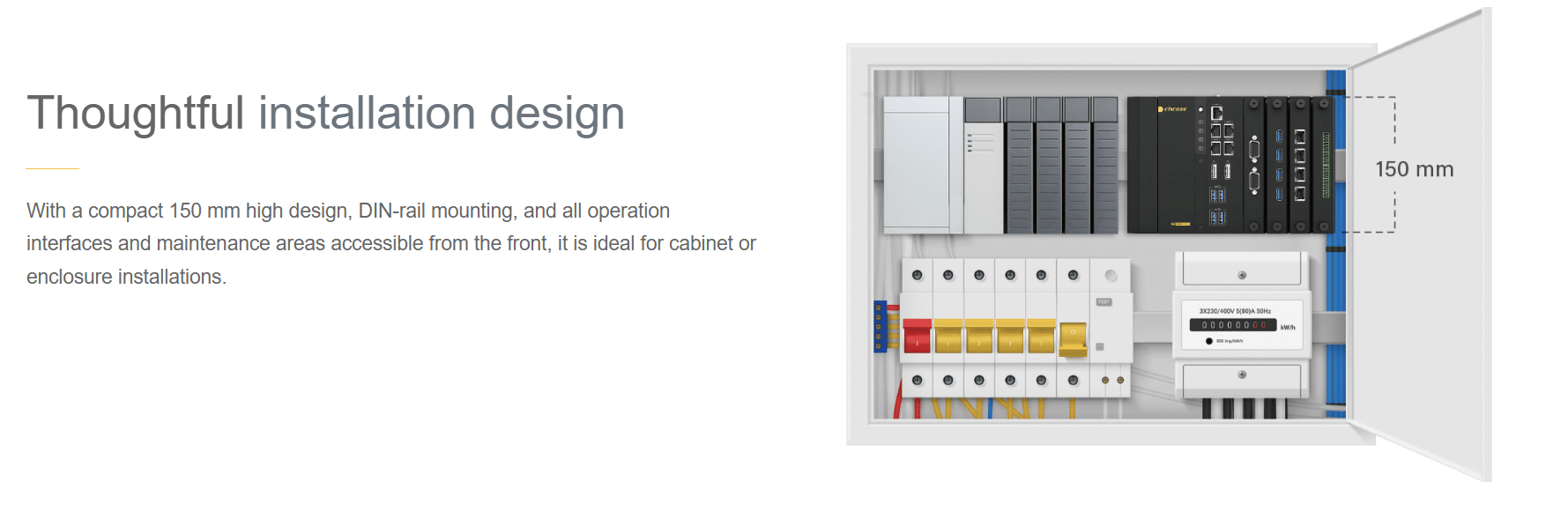

| Mounting | Wall / DIN-RAIL Mount |
| Operating Temperature | 35W TDP Processor:-40℉ to 149℉; 45W TDP Processor:-40℉ to 131℉:65W TDP Processor:-40℉ to 113℉ |
| Storage Temperature | -40℉ to 185℉ |
| Relative Humidity | 95%@65℃ |
| Shock | Operating, 30 Grms, Half-sine 11 ms Duration (w/ External Fan & SSD, according to IEC60068-2-27) |
| Vibration | Random Vibration: Operating, 3 Grms, 5-500 Hz, 3 Axes; Sinusoidal Vibration: Operating, 1 Grms, 10-500 Hz, 3 Axes |
| OS Software Supported | Windows 11, Windows 10, Ubuntu 22.04 |
| Certifications | • CE, UKCA, FCC, ICES-003 Class A • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz • EMC – EN/BS/IEC 61000-6-4: 2019 Class A – EN/BS/IEC 61000-6-2: 2019 |
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
| Global P/N / SKU | 1708636 |
