Additional information
| CPU | Intel® Atom Processor X Series (Amston Lake) |
|---|---|
| Memory Type | 262-pin DDR5 4800MHz SO-DIMM (Non-ECC) |
| Memory Slots | 1 |
| Maximum Memory Supported | 32GB |
| Watchdog Timer | Generates a system reset with internal timer for 1 min/s ~ 255 min/s |
| GPIO Interface | 1 x GPIO |
| Integrated Graphics | Intel® UHD Graphics |
| Video | 1 x DisplayPort++, 1 x HDMI, 1 x Type-C (DP Alt. Mode), 1 x eDP |
| LAN Ports | 2 x Intel® I226 2.5 GbE |
| Serial ATA (SATA) | 1 x SATA III (See ordering options) |
| Extended Interface | 1 x M.2 2230 (Key E) for Wi-Fi and Bluetooth, 1 x M.2 2280 (Key M) support Gen3 PCIe x4 for NVMe |
| Internal I/O | 2 x USB 2.0, 1 x SMBus, 1 x GPIO, 1 x RS-232/422/485, 1 x DC-Out, 1 x Header for eDP/LVDS (LVDS support requires module, please contact sales), 1 x Speaker Out with Amplifier |

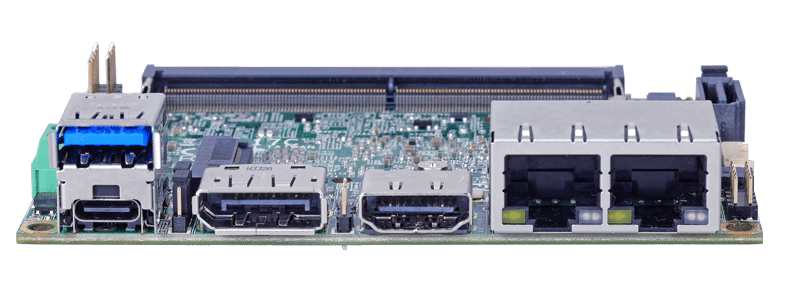

| Rear I/O | 1 x DP, 1 x HDMI, 1 x Type-C (DP Alt. Mode), 1 x USB 3.2 Gen2, 2 x LAN |
| Audio | Realtek ALCC888S HD Audio with 3W amplifier for 4 ohm speaker |
| Power Requirement | DC input 12V±5% |
| Dimensions | 3.94" x 2.83" (100mm x 72mm) |
| Operating Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Relative Humidity | 10 ~ 90% (non-condensing) |
| OS Software Supported | Windows 10 64-bit, Windows 11 64-bit |
| Global P/N / SKU | 2809206 |
