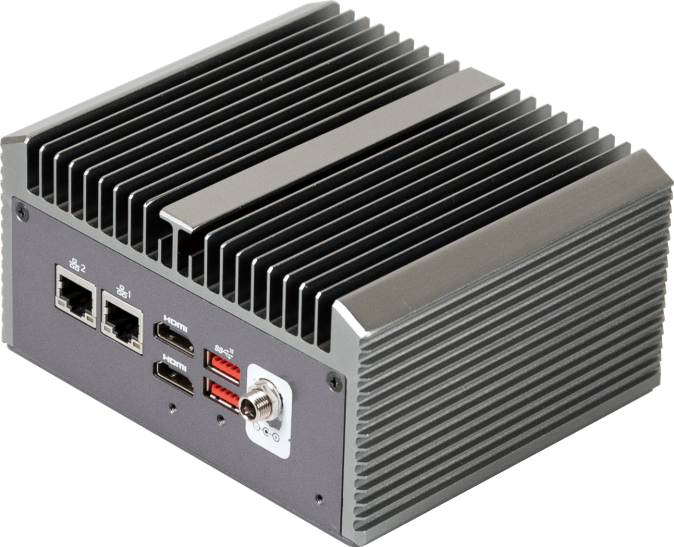

QBiX-WHLA8265H-A1 – Fanless Embedded Industrial System with Intel® Core i5 Processor

The QBiX-WHLA8265H-A1 is a fanless embedded system, capable of handling most industrial environments. Its small form factor and 2 simultaneous independent displays allow it to fit in tight spaces while maintaining performance. The QBiX-WHLA8265H-A1 is an excellent solution for IoT, PoS, and other modern industrial needs.

Additional information

CPU

Intel® Core™ i5-8265U Processor

Memory Type

260-pin DDR4 2400MHz SO-DIMM

Memory Slots

2

Maximum Memory Supported

32 GB

Chipset

Integrated in SoC

Integrated Graphics

Intel® UHD Graphics 620

Video

2 x HDMI 1.4

LAN Ports

1 x Intel® i219V GbE LAN, 1 x Realtek RTL8111HS GbE LAN

Serial ATA (SATA)

1 x SATA III for 2.5" HDD/SSD

Extended Interface

1 x M.2 2280 M-Key, 1 x M.2 2230 E-Key, 1 x Vertical USB 3.0

Rear I/O

2 x HDMI, 2 x RJ-45, 2 x USB 3.1 Gen 2, 1 x Screw type DC-in jack

Front I/O

2 x USB 3.1 Gen 2, 2 x Antenna holes, 1 x RS232/422/485

Audio

Realtek ALC269 HD Audio

Power Requirement

DC input 9 ~ 36V

Dimensions

5.43" x 4.65" x 2.92 (138mm x 118mm x 74.2mm)

Operating Temperature

32 ~ 122°F (0 ~ 50° C)

Storage Temperature

-40 ~ 185°F (-40 ~ 85°C)

Shock

50G, half sine, 11 ms duration

Vibration

5Grms, random, 5 ~ 500 Hz, 1hr / Per Axis

OS Software Supported

Windows 10 IoT 2019 64-bit

Global P/N / SKU

1708276

Ordering Options

QBiX-WHLA8265H-A1 (SKU# 1708276A): Fanless Industrial Embedded System equipped with Intel® Core™ i5-8265U

Ordering Options

QBiX-WHLA8265H-A1 (SKU# 1708276A): Fanless Industrial Embedded System equipped with Intel® Core™ i5-8265U

QBiX-WHLA8265H-A1 – Fanless Embedded Industrial System with Intel® Core i5 Processor

The QBiX-WHLA8265H-A1 is a fanless embedded system, capable of handling most industrial environments. Its small form factor and 2 simultaneous independent displays allow it to fit in tight spaces while maintaining performance. The QBiX-WHLA8265H-A1 is an excellent solution for IoT, PoS, and other modern industrial needs.

CONTACT US NOW

System *

Memory

2.5″ SATA SSD

Operating System (Only available if a storage device is selected from above.)

Testing (Only available if memory is included at time of purchase.)

SKU: 1708276 Tags: Industrial Automation, Internet of Things (IoT), POS-Kiosk
