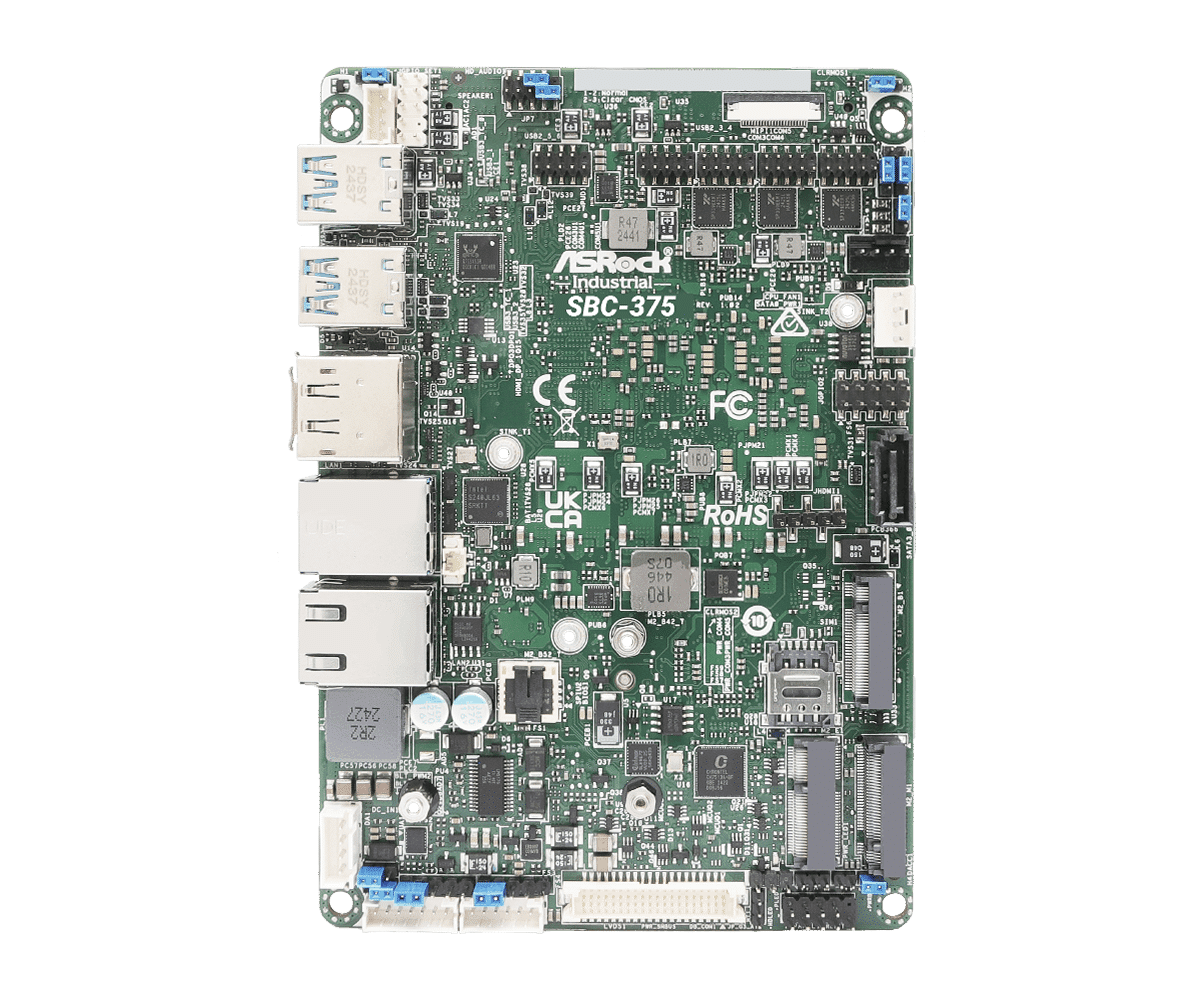

SBC-375 – 3.5 Inch Single Board Computer with Intel® Meteor Lake-H Processors

The SBC-375 is a 3.5 inch Single Board Computer equipped with Intel® Meteor Lake-H Core™ Ultra processors which enables incredible performance in a small form factor. With DDR5 memory support as well as the extensive expansion options, this small board is well suited for most industrial applications. The SBC-375 can support up to 4 displays simultaneously using integrated Intel® Arc™ Graphics.

Additional information

CPU

Intel® Core™ Ultra processors (Meteor Lake-H)

Memory Type

262-pin DDR5 5600 MHz SO-DIMM

Memory Slots

1

Maximum Memory Supported

48GB

Integrated Graphics

Intel® Arc™ Graphics

Watchdog Timer

256 Segments, 0, 1, 2, …255sec

Video

1 x HDMI 2.1 TMDS, 1 x DisplayPort 1.4a, 2 x USB 3.2 Gen2x2 (Type-C, supports DP 1.4a display output), 1 x LVDS/eDP

LAN Ports

1 x Intel® I226LM 2.5GbE vPro, 1 x Intel® I210AT GbE

Serial ATA (SATA)

1 x SATA III

Storage

1 x M.2 M-Key 2242/2280 PCIe Gen4 x4, 1 x M.2 M-Key 2242 PCIe Gen4 x4

RAID

Intel® VMD RAID 0/1 **supported by PCIE interface PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M

GPIO Interface

4 x GPI, 4 x GPO

TPM

TPM 2.0 onboard IC

Extended Interface

1 x PCIe Gen3 x1 (supports up to 10W), 1 x M.2 E-Key 2230 PCIe Gen4 x1, 1 x M.2 B-Key 3042/3052 PCIe Gen4 x1, 1 x SIM Socket (Connected to M.2 B-Key)

Rear I/O

1 x HDMI, 1 x DP, 2 x LAN, 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen2x2 (Type-C)

Internal I/O

2 x USB 2.0 headers, 3 x RS-232/422/485, 1 x GPIO header, 1 x LVDS/eDP, 1 x SATA PWR, 1 x Speaker header, 1 x MIPI Camera header

Audio

Realtek ALC256 HD Audio

Power Requirement

12 ~ 36V DC Input

Dimensions

5.8" x 4" (147mm x 102mm)

Operating Temperature

-20 ~ 70 °C (-4 ~ 158 °F)

Storage Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

Relative Humidity

5 ~ 90%

OS Software Supported

Windows 10 64-bit, Windows 11 64-bit

Global P/N / SKU

3308951

Ordering Options

SBC-375P (SKU# 3308951A):
3.5″ Single Board Computer with Intel® Core™ Ultra 7 155H Processor

SBC-375M (SKU# 3308951B):
3.5″ Single Board Computer with Intel® Core™ Ultra 5 125H Processor

Downloads

Datasheet

Ordering Options

SBC-375P (SKU# 3308951A): 3.5" Single Board Computer with Intel® Core™ Ultra 7 155H Processor SBC-375M (SKU# 3308951B): 3.5" Single Board Computer with Intel® Core™ Ultra 5 125H Processor
